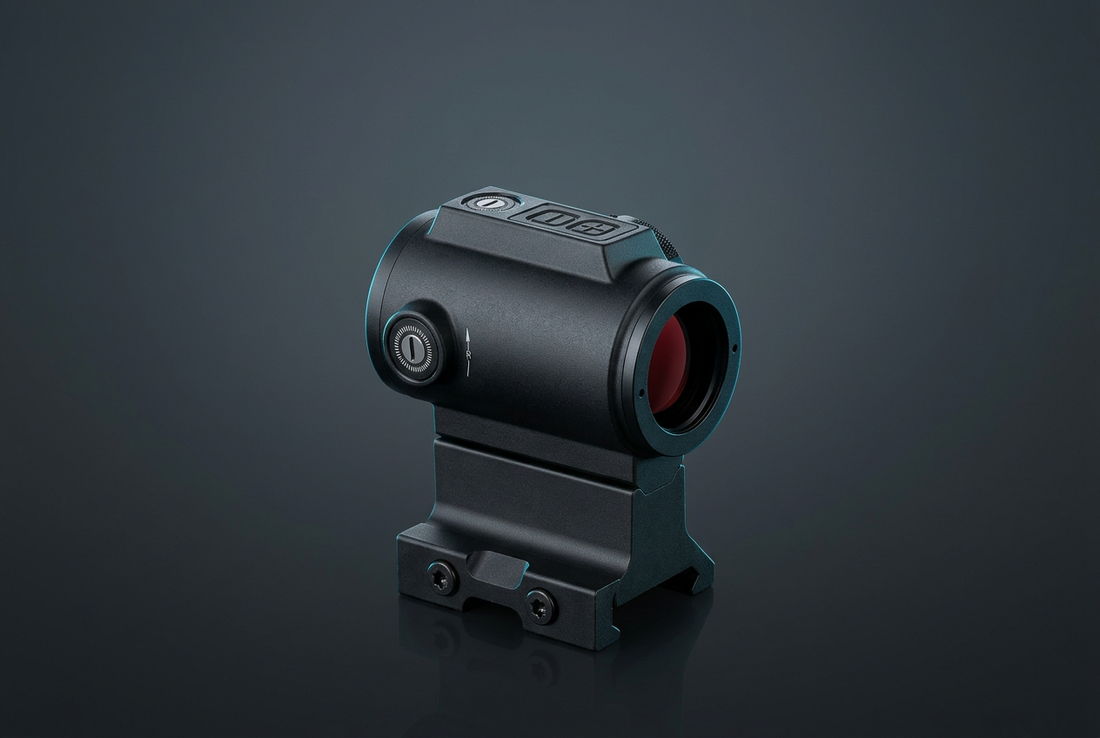

How Do Red Dot Sights Work?
You mount a red dot on a carbine, press it to your shoulder, and the dot appears to float right on target — no alignment of front and rear sights required. It feels almost like a trick. A red dot sight works by projecting a small LED-generated dot onto a curved, partially reflective lens that bounces the light toward your eye while letting the downrange scene pass straight through — the dot has no physical location in space, yet it stays on target regardless of where your eye is behind the glass.
Key takeaways
- The dot is created by an LED, not a laser — the coated lens reflects that light toward the shooter while staying transparent to everything else.
- Red dot sights are inherently parallax-tolerant: as long as the dot is visible in the lens, you will hit where the dot sits, even if your eye moves slightly off-center.
- A 3 MOA dot subtends roughly 3 inches at 100 yards — a precise enough aiming point for most practical shooting ranges.
- Open reflex designs (like all Accufire red dots) place the emitter and lens in an open housing, keeping the sight lighter and the view unobstructed.
- One genuine tradeoff: shooters with uncorrected astigmatism often see the dot as a starburst rather than a crisp circle — this is an eye condition, not a sight defect.
The optical principle: LED, coated lens, and your eye
Inside every red dot sight sits a small LED pointed at a curved, partially silvered lens — often called the objective lens or reflector. The coating is wavelength-selective: it reflects the specific red (or green) wavelength emitted by the LED while transmitting almost all other visible light. When you look through the sight, your eye receives two things simultaneously: a wide-open view of the target and the reflected LED dot, which appears to hover in the same focal plane as your target.
This is the fundamental difference between a red dot and a traditional iron sight. With iron sights, you must align a rear notch, a front post, and the target across three separate focal planes — a task your eye cannot do perfectly, since it can only focus at one distance at a time. A red dot collapses that to a single plane: put the dot on the target, press the trigger. That speed advantage is substantial in dynamic shooting situations.
For a broader look at red dot fundamentals alongside other optic types, the Accufire Complete Red Dot Guide covers the full category in depth.
Open reflex vs enclosed designs
Red dot sights fall into two broad housing types. An enclosed sight — like the Aimpoint Micro or Holosun EPS — seals the lens inside a tube or box, protecting the reflective coating from the elements at the cost of added weight and a smaller window. An open reflex sight mounts the emitter and exposed lens on a minimal frame, saving weight and maximizing the sight picture.
Every Accufire red dot is an open reflex design. The QSO, for example, uses a 20×20 mm window — wide enough to acquire the 3 MOA dot quickly with both eyes open. The PCO Reflex stretches that window to 28×17.5 mm, sized specifically for full-size pistol slides on the Trijicon RMR footprint. Both styles share the same underlying LED-reflector physics; the housing shape is an engineering tradeoff between protection and weight, not a difference in how the dot is generated.
Parallax and why the dot stays on target
The most common question about red dots is whether eye position matters. The honest answer: almost not at all, within practical limits. Because the LED and the reflective lens are at a fixed distance from each other, the reflected dot is optically collimated — the light rays coming off the lens are parallel, which means the dot appears at the same angular position relative to the target regardless of small lateral shifts in your eye. This is called parallax-free operation at the designed zero distance.
Some red dot sights specify a parallax-free distance (commonly 50–100 yards). At other distances a small amount of parallax error exists, but it is typically less than the angular size of the dot itself and rarely matters in practice at normal engagement distances. The textbook rule holds: if the dot is on the target, the round goes to the dot.
MOA dot size and what it means at distance
Dot size is measured in MOA — minute of angle. One MOA equals approximately 1.047 inches at 100 yards, typically rounded to 1 inch for practical purposes. All Accufire red dots use a 3 MOA dot, which covers roughly 3 inches at 100 yards and 1.5 inches at 50 yards.
A smaller dot (1–2 MOA) obscures less of the target at distance but can be harder to pick up quickly under stress. A larger dot (6+ MOA) is faster to find but covers more of the target at longer ranges. The 3 MOA size is a widely chosen middle ground for carbines and pistols — precise enough for 50–100 yard shots, fast enough for close-range use. If you are comparing dot sizes in detail, the 2 MOA vs 6 MOA dot size guide walks through the tradeoffs with real numbers.
Battery life, shake-awake, and solar backup
The LED at the heart of a red dot draws very little current, which is why battery life in modern sights is measured in thousands of hours rather than days. The Accufire QSO runs on a CR2032 coin cell with a rated life of approximately 20,000 hours. That figure is at a moderate brightness setting — very high brightness settings shorten runtime, and very low settings extend it.
To protect battery life in storage and between range trips, the QSO includes a shake-awake circuit: the sight sleeps after roughly 4 minutes of stillness and wakes the moment it detects motion. This is a practical feature for carry guns and patrol rifles where constantly switching the sight on and off introduces another administrative step. Accufire also offers the QSO-S at $129.99, which adds a solar cell alongside the CR2032 — the panel harvests ambient light to reduce battery draw, a useful reserve in outdoor conditions where light is plentiful.
One honest limitation: shake-awake uses a motion sensor, and in some mounting configurations (on a fixed rest or a bag), the sensor may not trigger if vibration is too gentle. Knowing how your specific setup behaves is worth a quick check before a match or a hunt.
Water resistance and ruggedness
Lens coatings and electronic circuits need protection from moisture. The QSO and QSO-S carry an IPX-7 water resistance rating, meaning they are tested to submersion in up to 1 meter of water for 30 minutes. That covers rain, water crossings, and condensation with a reasonable margin. IPX-7 is not the same as a full waterproofing standard like the IPX-8 ratings used on some premium duty optics — but for most field and range use it is more than adequate.
How the PCO pistol red dots differ mechanically
The PCO Reflex ($149.99) and PCO Mini ($179.99) share the same LED-reflector principle as the QSO, but are engineered specifically for pistol slides. The key differences are footprint and window geometry. The PCO Reflex mounts on the Trijicon RMR footprint — the most common full-size pistol cut — with a 28×17.5 mm window and a top-loading battery for battery changes without removing the sight from the slide. The PCO Mini uses the RMSc footprint designed for slim and sub-compact frames, with a side-loading battery. Both run a 3 MOA dot.
The PCO-S at $239.99 adds solar harvesting to the RMR-footprint pistol platform, providing power redundancy for a duty or carry optic. If you are deciding which footprint your slide accepts, the astigmatism and red dot guide also covers how lens geometry interacts with different visual conditions — a practical companion read.
One honest tradeoff: astigmatism
Shooters with uncorrected or under-corrected astigmatism often see the red dot as a starburst, comet, or smear rather than a sharp circle. This is not a defect in the sight — it results from the eye's cornea or lens not focusing the collimated LED light into a single point on the retina. Corrective lenses often resolve or reduce the distortion. Switching to a green LED emitter (if your sight supports it) can help, because the human eye has more contrast sensitivity in the green portion of the spectrum. Lower brightness settings also reduce the perceived blooming. If the dot looks crisp with glasses on but blurry without them, the sight is performing as designed.
Browse the Accufire red dot lineup. Open reflex sights for rifle and pistol, all at 3 MOA, built on an in-house R&D pipeline in Dallas, Texas — shop the red dot collection.
Accufire QSO Red Dot Sight — $119.99, 20×20 mm window with shake-awake and IPX-7 water resistance on a CR2032 battery. A solid open-reflex option for carbines and budget-conscious rifle builds. View the QSO.
Frequently asked questions
How does a red dot sight create the dot?
An LED inside the housing shines onto a curved, partially reflective lens. The lens coating reflects the LED wavelength toward your eye while letting the downrange view pass through. The result is a dot that appears to float on the target without any glass or prism between your eye and the field of view.
Does it matter where my eye is behind a red dot?
No, not in any meaningful way at normal shooting distances. Because the reflected dot is collimated, it appears at the same angle relative to the target regardless of small lateral shifts in your eye position. This parallax tolerance is one of the main speed advantages of a red dot over traditional iron sights.
What does 3 MOA mean for a red dot?
MOA stands for minute of angle. One MOA equals approximately 1 inch at 100 yards. A 3 MOA dot therefore covers roughly 3 inches of target at 100 yards and about 1.5 inches at 50 yards. All Accufire red dots use a 3 MOA dot, which balances target precision at moderate range with fast acquisition at close range.
What is shake-awake on a red dot?
Shake-awake is a motion-sensing circuit that puts the sight to sleep after a period of stillness — about 4 minutes on the Accufire QSO — and wakes it instantly when motion is detected. It preserves battery life without requiring the shooter to manually power the sight on and off before each use.
Why does my red dot look blurry or like a starburst?
Starburst or comet-shaped dots are typically caused by uncorrected astigmatism, not a defect in the sight. The eye does not focus the collimated LED light into a single point. Wearing corrective lenses, reducing brightness, or trying a green-emitter option often improves the appearance. A sharp dot with glasses on but a blurry one without confirms the eye is the variable.
Understanding how a red dot works makes every other decision — dot size, housing style, battery system, footprint — easier to reason through. For the next step, the red dot zeroing guide covers the practical process of getting your dot printing where the rounds land, and the red dot vs holographic comparison explains how reflex optics compare to laser-hologram systems if you are weighing those options.
