What Is Eye Relief on a Rifle Scope (and Why It Matters)
You shoulder the rifle, look through your new scope, and something is off — there is a dark ring around the edge of the picture, or you find yourself craning your neck forward to make the image clear. Both are eye relief problems, and on a hard-kicking rifle the second one can leave a crescent cut over your eyebrow. Eye relief is the distance between the scope's rear lens and your eye that gives you a full, clear sight picture without a dark ring or blackout — getting it right means a complete view for accuracy and, on a rifle with real recoil, keeping the scope off your brow.
Key takeaways
- Eye relief is the distance from the rear (ocular) lens to your eye that delivers a full field of view; most rifle scopes fall around 3 to 5 inches.
- It matters for three reasons: safety from recoil, a consistent full sight picture for accuracy, and a comfortable, repeatable head position.
- Too close risks "scope eye" under recoil; too far back gives you a dark ring called scope shadow and a cropped field of view.
- Set eye relief at the magnification you use most — often the highest, where the eye box is tightest — and the Accufire EVRO-12 and ATRO-20 give you 3.22 to 3.5 inches to work with.
What eye relief is — and the eye box
Eye relief is simply how far your eye sits from the eyepiece when the image fills the tube edge to edge. Closely related is the eye box: the small three-dimensional zone behind the eyepiece — the eye relief distance plus a little side-to-side and up-down latitude — where you still see a complete picture. A generous eye box is forgiving of an imperfect head position; a tight one demands you place your eye in exactly the same spot every time. The eye box also shrinks as you crank up magnification, which is why a scope that is easy to get behind at 4× can feel fussy at 20×.
Why eye relief matters
Three things ride on it. Safety comes first: on a rifle with meaningful recoil, a scope mounted too close drives its eyepiece back toward your face when the gun fires, and "scope eye" — a recoil cut over the brow — is a common, avoidable injury. Accuracy comes next: when eye relief is correct, the full sight picture is simply there when you mount the rifle, so you are not hunting for the image or introducing error by shifting your head. And comfort ties it together: the right distance lets you build a natural, relaxed cheek weld you can repeat shot after shot.
What goes wrong: too close versus too far
The two failure modes look different through the glass. If your eye is too far back or off to the side, you see a dark ring creeping in around the image — scope shadow — and you lose part of your field of view. If your eye is too close, the image can distort, and under recoil the eyepiece has room to travel into your brow. Both are mounting problems, not defects, and both are fixed by where the scope sits in the rings and how you build your position behind it.
| What you see or feel | Likely cause | Fix |
|---|---|---|
| Dark ring around the image (scope shadow) | Eye too far back or off-center | Center your head; slide the scope rearward in the rings |
| Image blacks out at high power | Outside the eye box at that magnification | Set eye relief at max power; keep a consistent cheek weld |
| Eyepiece contacts your brow under recoil | Scope mounted too close to your eye | Slide the scope forward in the rings; build a proper stock weld |
How much you need and how to set it
Most variable rifle scopes give you somewhere around 3 to 5 inches of eye relief, which is plenty of room to mount them well — the Accufire EVRO-12 and ATRO-20, for example, run 3.22 to 3.5 inches. Hard-recoiling magnums and scout-style setups are where you specifically look for longer relief. To set it, mount the rifle naturally with your eyes closed, open them, and slide the scope in the rings until the picture is full and centered without you reaching or pulling back — and do this at the highest magnification you plan to use, because that is where the eye box is least forgiving.
Mounting a new scope? Accufire's variable optics give you 3.22 to 3.5 inches of eye relief to set a comfortable, full sight picture — explore Accufire rifle scopes.

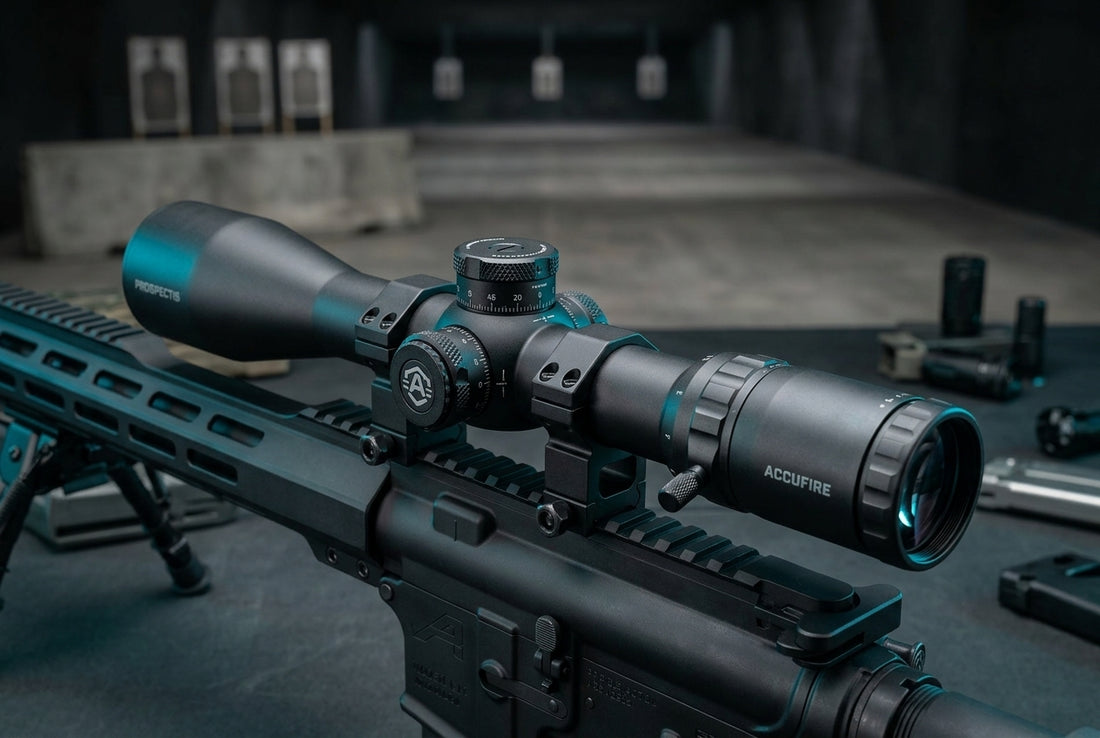

Accufire ATRO-20 Advanced Tactical Rifle Scope — $649.25. A 2.5–20x50 first focal plane optic with 3.22–3.5 in of eye relief, side-focus parallax from 50 yards to infinity, and a 30 mm tube. View the ATRO-20.
Frequently asked questions
What is eye relief on a rifle scope?
Eye relief is the distance between the scope's rear (ocular) lens and your eye that lets you see the full field of view without a dark ring or blackout. Most rifle scopes have around 3 to 5 inches of eye relief.
Why does eye relief matter?
It affects safety, accuracy, and comfort. On a hard-recoiling rifle a too-close scope can strike your brow, correct eye relief gives a full and consistent sight picture for accuracy, and the right distance lets you build a comfortable, repeatable head position.
What is scope eye?
Scope eye is a recoil injury where the scope's eyepiece is driven into your eyebrow because the scope was mounted too close to your eye. Setting proper eye relief and building a solid shooting position prevent it.
What is the eye box?
The eye box is the three-dimensional zone behind the eyepiece — the eye relief distance plus a little side-to-side latitude — where you see a full image. It shrinks as magnification increases, so high power is less forgiving of head position.
How much eye relief does the Accufire EVRO-12 have?
The Accufire EVRO-12 has about 3.22 to 3.5 inches of eye relief, which is typical for a variable scope and leaves room to mount it for a comfortable, full sight picture.
Eye relief is set when you mount the scope, so it pays to get the rest of the setup right at the same time. Our guides to reading rifle scope numbers and choosing between an LPVO and a fixed-power scope cover the choices that go with it.
