Night Vision Scope Attachments Explained
You have a quality daytime rifle scope already zeroed and trusted — and now you want to extend its usefulness past last light. The question is whether to clip a night-vision device in front of it, mount one behind it in-line, or ditch the approach entirely and run a dedicated night-vision optic. Clip-on night-vision attachments preserve your daytime zero and let you swap back quickly, but they add length and cost; a dedicated night-vision optic is often simpler, more compact, and increasingly the better value for most shooters.
Key takeaways
- Clip-on night-vision devices mount in front of your day scope objective, passing an amplified or digitally enhanced image through the existing glass — your zero is retained because you never remove the day scope.
- In-line (behind-the-scope) NV devices mount between the day scope eyepiece and your eye; they are less common and require a compatible exit-pupil diameter to avoid vignetting.
- Analog clip-ons use an image-intensifier tube (Gen 1/2/3); digital clip-ons use a CMOS/CCD sensor and do not require a tube — digital units are typically more affordable and can record footage, but image quality in true darkness still trails high-gen analog.
- Eye relief stacks when you add a clip-on or in-line device — check that the total eye-relief budget keeps your face off the scope and the full image in view.
- Accufire does not make a clip-on NV device; its after-dark optic is the OMNIS, a standalone digital day/night spotting scope with 30–120× digital zoom and OLED display — a different but capable approach.
How clip-on night-vision attachments work
A clip-on night-vision (CNVD) device attaches ahead of the day scope's objective lens. In analog models, an objective lens gathers available light, focuses it on a photocathode inside an image-intensifier tube, converts photons to electrons, accelerates them through a microchannel plate, and strikes a phosphor screen — producing the classic green or white glow familiar from military footage. That phosphor image is re-projected through a relay lens, and your existing day scope magnifies it just as it would a daytime scene. Because the clip-on is forward of the scope, removing it restores your exact daytime zero without re-zeroing — which is the primary tactical and practical advantage of the clip-on design.
Digital clip-ons replace the tube with a CMOS or CCD sensor and a small display. The sensor captures available light (and IR illuminator output), renders it on a micro-display, and a relay lens sends that image into your scope's objective. No photocathode means no high-voltage circuitry, no tube-life concerns, and a lower price point. The tradeoff is real: in true low-light conditions with zero artificial illumination, analog Gen 2 and Gen 3 tubes still resolve more detail than most affordable digital sensors. If you spend time in terrain with ambient light from stars, moon, or urban glow, digital performs acceptably and the recording capability is a genuine advantage. In a sealed cave, quality analog tubes win.
In-line mounting: behind the day scope
Some night-vision devices are designed to mount between the day scope's eyepiece and your eye — what is sometimes called an "ocular" or behind-the-scope configuration. This arrangement is less common than front-clip-on designs. The challenge is that your day scope's exit pupil must be large enough to deliver a usable image to the NV device's objective; a scope with a tiny exit pupil at high magnification will vignette severely. Additionally, the NV device's own optics add to the total eye-relief distance you must maintain. You end up further from the eyepiece, which can be awkward on bolt-action rifles with limited stock adjustment.
In-line devices tend to appear in dedicated nighttime hunting setups where the shooter accepts the configuration as permanent for a given session. They are not a quick swap solution. If preserving daytime usability across sessions is a priority, front-mounting clip-on designs are more practical.
Alignment, eye relief, and practical setup
Adding any device to an existing optic stack changes the effective eye relief — the distance from your eye to the last optical element before your eye. Clip-on devices mounted ahead of the objective do not directly change eye relief at the scope itself, but they add mass and length to the forend, which can shift balance and your natural cheek-weld position. Always re-check that your face is not pulled forward into the scope's recoil envelope after adding a front clip-on.
For in-line devices, the math is direct: if your scope has 3.5 inches of eye relief and the NV module adds 2 inches of glass between you and the scope, you need to mount your body 5.5 inches back from where you sat before. On rifles with hard recoil this is a safety concern, not just a comfort issue. Consult the NV device's manual for its optical offset spec before mounting. If your rifle scope already sits near the rear limit of its rings due to stock geometry, an in-line device may not be feasible without moving the scope forward, which then changes your zero distance from the muzzle. This is the honest complexity that many buyers discover too late.
One alignment issue specific to clip-on front mounts: the NV device must be centered on the objective axis. Offset mounting causes parallax errors — the image projected into the scope appears displaced from where the reticle points. Quality clip-ons include precise dovetail or Picatinny rail adapters that register to the objective bell or a dedicated rail forward of it. Check fit before trusting the zero at any distance.
Digital vs analog clip-ons: honest comparison
| Factor | Analog (Gen 1/2/3 tube) | Digital (CMOS/CCD sensor) |
|---|---|---|
| Image in true darkness | Gen 2/3 excellent; Gen 1 moderate | Depends heavily on IR illuminator |
| IR illuminator dependence | Lower (tube amplifies ambient) | Higher (sensor needs IR to fill gaps) |
| Video/photo recording | Rare; mostly add-on | Often built-in |
| Tube lifespan concern | Yes (tens of thousands of hours; avoid daylight exposure) | No tube to degrade |
| Typical price range | $500–$5,000+ depending on generation | $200–$2,000 at most retail tiers |
| Zero retention | Both retain day-scope zero when clip-on is removed | Both retain day-scope zero when clip-on is removed |
The honest tradeoff worth stating plainly: if your budget sits under $600, digital clip-ons outperform Gen 1 analog at a similar price, especially for woodland hunting where IR illuminators fill in effectively. Above $1,000, Gen 2 and Gen 3 analog tubes begin to pull ahead on pure detection range in starlight-only conditions. Most hunters, recreational shooters, and property owners operate with some ambient light or use IR illuminators anyway, which narrows the real-world gap between the technologies. Night-vision and IR-assisted hunting is heavily regulated and varies by jurisdiction — confirm what is legal for your species, season, and method with your state and local regulations and any applicable ATF rules before hunting after dark.
The dedicated night-vision optic alternative
Clip-on and in-line configurations solve a specific problem: keeping a high-quality day scope in the system while adding NV capability. But for many shooters, especially those who do not need to toggle rapidly between day and night on the same rifle, a standalone night-vision or digital day/night optic is simpler, lighter, and more ergonomically natural. You do not have to manage two optic systems, worry about front-mount stability, or accept any optical degradation from adding relay glass to the chain.

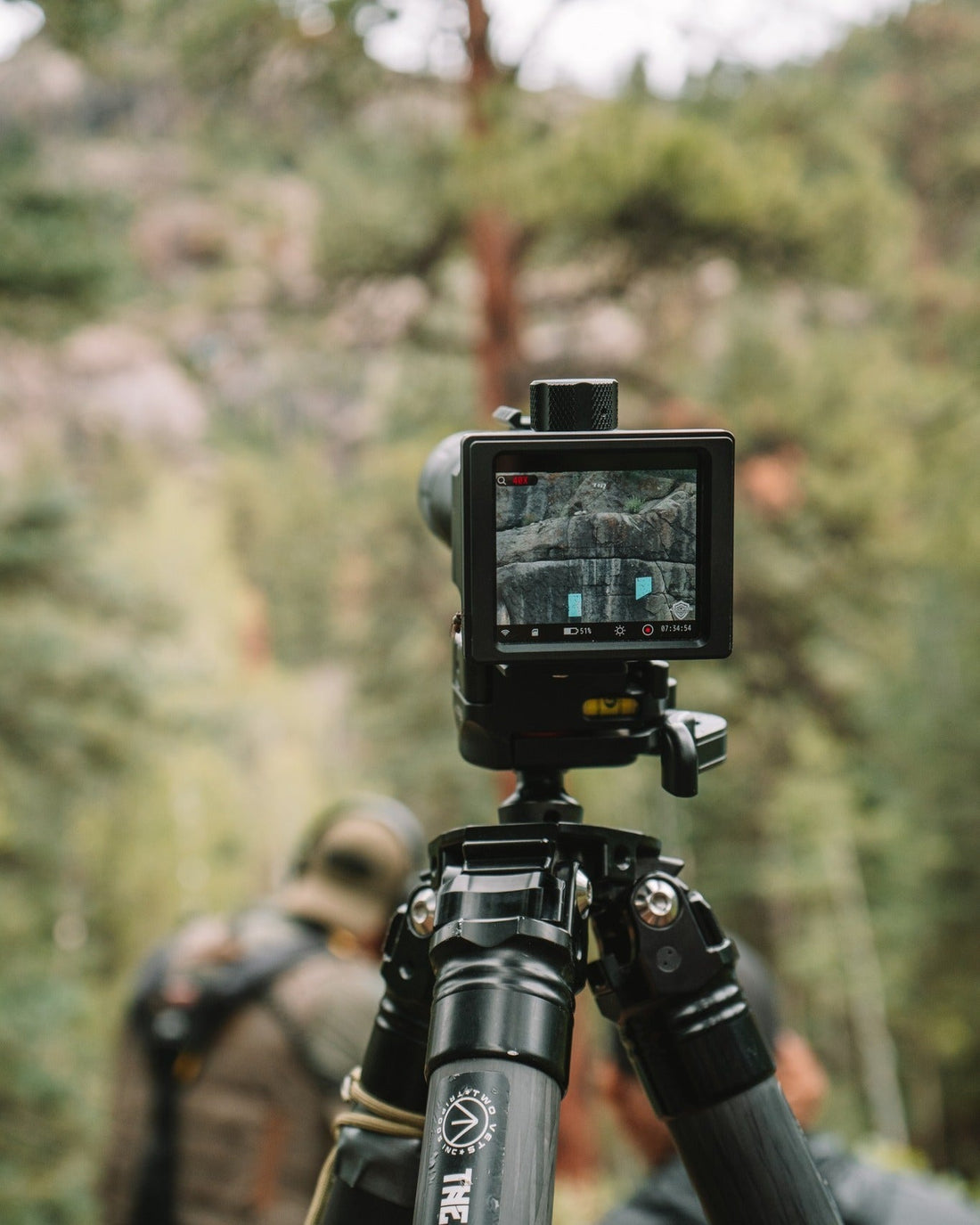

Accufire does not make a clip-on NV device. Its after-dark optic is the OMNIS digital spotting scope — a standalone digital day/night unit that covers both roles in a single package. If you are curious how digital night-vision compares to thermal detection technology, the thermal vs night vision comparison breaks down the key differences in practical terms. For a deep dive into the OMNIS itself, see the OMNIS overview article.
Explore Accufire's night-vision lineup. The OMNIS digital day/night spotting scope is Accufire's after-dark optic — digital night vision, OLED display, 30–120× zoom, photo and video recording. No clip-on complexity, no tube to protect from daylight — browse the night-vision collection.

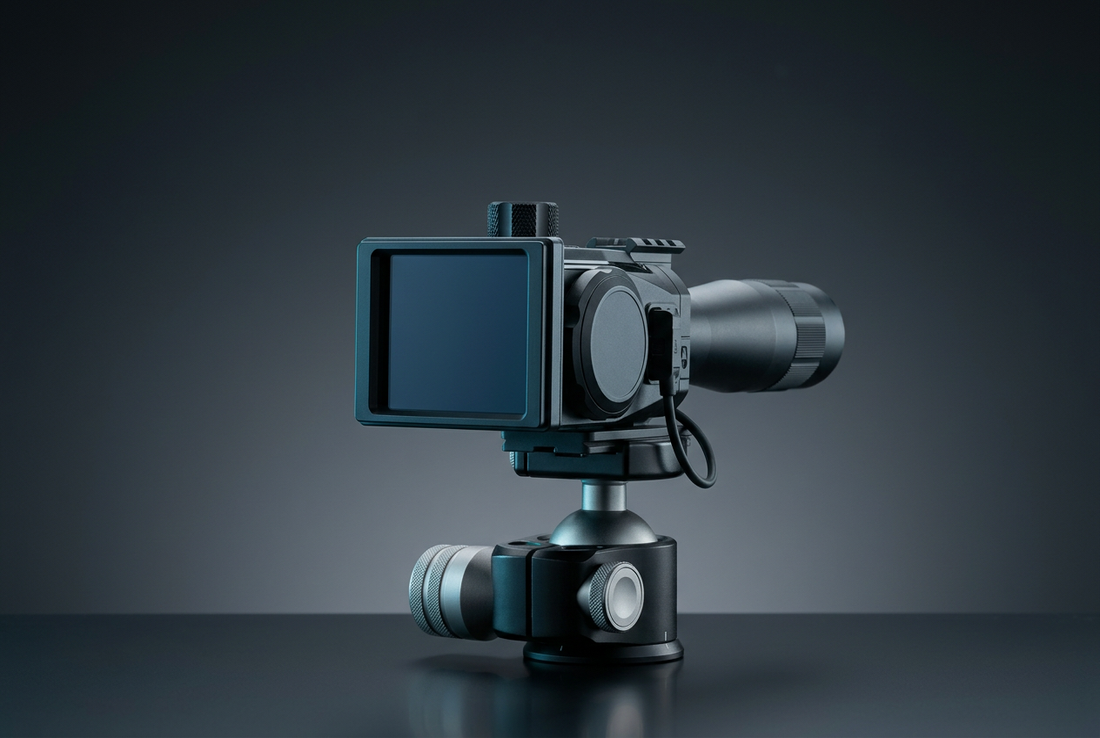

Accufire OMNIS Digital Spotting Scope — $1,319.95, with 30–120× digital zoom, an OLED display, 8 selectable MRAD reticles, and built-in photo/video recording. Night mode uses digital night vision (removable IR-cut filter plus IR illumination) — not thermal. View the OMNIS.
Frequently asked questions
Does a clip-on night-vision attachment change my scope zero?
No. A front-mounting clip-on attaches ahead of the day scope objective and does not alter the scope or its reticle position. Remove the clip-on and your daytime zero is exactly where you left it. This zero retention is the main reason shooters choose clip-on designs over replacing the scope entirely.
What is the difference between analog and digital night-vision clip-ons?
Analog clip-ons use an image-intensifier tube that amplifies available light through a photocathode and microchannel plate. Digital clip-ons use a CMOS or CCD sensor that captures light and displays it on a micro-screen. Analog Gen 2 and Gen 3 tubes deliver better image clarity in true darkness with no IR illumination. Digital units are typically less expensive, record video, and do not carry tube-lifespan concerns, but rely more heavily on IR illuminators in very dark conditions.
Can I use a night-vision clip-on with any rifle scope?
Most front-mounting clip-ons attach to Picatinny rails or clamp around the objective bell, so they are broadly compatible. However, very large objective diameters or unusual bell profiles may not accept all clip-on adapters. For in-line behind-the-scope devices, you also need to verify that the scope exit pupil is large enough to avoid vignetting, and that your total eye relief remains safe for the rifle caliber you are shooting.
Does adding a clip-on affect image quality through my day scope?
Yes, to some degree. Any clip-on device adds optical elements between the scene and your scope, which can reduce brightness slightly, introduce minor chromatic effects, or limit resolution compared to a purpose-built night-vision scope. High-quality clip-ons minimize this degradation, but the convenience of preserving your day scope comes with a real optical cost that should factor into your decision.
Is the Accufire OMNIS a thermal optic or a night-vision device?
The OMNIS is a digital night-vision device, not a thermal optic. It detects reflected light (including IR illumination) rather than heat signatures. It operates as a standalone digital day/night spotting scope with 30 to 120 times digital zoom, an OLED display, and photo and video recording capability. Accufire does not currently make a thermal scope.
Understanding the full landscape of after-dark optics helps you choose the right tool rather than forcing a clip-on setup onto a situation that calls for a dedicated device, or vice versa. If you are also evaluating what type of magnification to run during daylight hours, the rifle scope complete guide covers the fundamentals of choosing scope magnification, focal planes, and turret systems. For the thermal versus digital night-vision question that many buyers face before committing, the thermal vs night-vision breakdown is worth reading before you spend.
