Night Vision Generations Explained: Gen 1, 2, 3 and Digital

By Accufire Editorial Team · June 7, 2026

You're shopping for a night-vision optic, and the listings are throwing around "Gen 1," "Gen 3," and "digital" as if they mean the same category of thing — they don't. Night-vision generations (Gen 1, 2, and 3) refer to analog image-intensifier tube technology that amplifies ambient light through a vacuum tube; digital night vision is a fundamentally different approach that uses a solid-state image sensor with no tube at all. Understanding the difference determines what performance you get, what you'll spend, and which legal and practical constraints apply.

How analog image-intensifier generations work

All three analog generations share the same core operating principle: a photocathode converts incoming photons into electrons, those electrons are accelerated and multiplied through a vacuum tube assembly, and a phosphor screen at the output end converts the electron stream back into visible light — typically the familiar green image (though some modern units use white phosphor). The generations differ in how efficiently and cleanly they do that amplification.

Generation 1 tubes use a single-stage electrostatic intensifier. They require more ambient light than later generations to produce a usable image, suffer noticeable image distortion toward the edges of the field (the "fishbowl" effect from the electrostatic focus), and have limited tube life relative to later designs. Gen 1 is the most affordable entry point into analog NV and remains adequate for short-range observation in environments with some residual light — moonlight or light-polluted skies help considerably.

Generation 2 introduced the microchannel plate (MCP), a thin glass disc perforated with millions of microscopic channels. Electrons entering the MCP cascade through those channels, producing far more electrons per input photon than a Gen 1 stage alone can achieve. The result is higher gain, better resolution, reduced distortion, and the ability to function in genuinely darker conditions. Gen 2 tubes also last significantly longer and are the workhorse of commercial law-enforcement and security applications in many markets.

Generation 3 adds a gallium arsenide (GaAs) photocathode, which is substantially more sensitive to near-infrared light than the multialkali photocathodes used in Gen 1 and Gen 2. Combined with an MCP and an ion barrier film that extends tube life, Gen 3 delivers the best signal-to-noise ratio, longest detection ranges in near-zero ambient light, and the longest service life of the three analog generations. These are the tubes found in U.S. military PVS-14 monoculars and comparable platforms. They are also export-controlled under ITAR — legally restricted from export without State Department licensing — and priced accordingly, typically $2,000–$5,000+ for a standalone monocular at the lower end of Gen 3.

Digital night vision: how it differs

Digital night vision dispenses with the photocathode-tube-phosphor chain entirely. A CMOS or CCD image sensor — the same fundamental technology in your phone's camera — captures low-light or near-infrared-illuminated scenes and feeds the signal to a digital processor, which outputs to an LCD or OLED display. An onboard or removable IR illuminator (typically 850 nm or 940 nm wavelength) floods the scene with light invisible to the unaided eye, and the sensor reads it back.

This architecture has meaningful tradeoffs in both directions. On the advantage side: digital units can operate in daylight (no tube to bloom out in bright light), they can record photo and video, they can stream to a phone or app over WiFi, and they typically carry a lower price floor than Gen 2 or Gen 3 tubes. They also avoid ITAR classification concerns that complicate Gen 3 products. On the limitation side: even a well-designed digital sensor does not match a premium Gen 3 tube's sensitivity at extreme low light with zero IR illumination — in a truly dark environment with no active IR emitter, a Gen 3 monocular using only starlight will generally outperform a digital sensor of similar price. The phosphor glow of a quality Gen 3 image also has a characteristic sharpness in the mid-field that digital processing at the same price point can't fully replicate. For many civilian shooting, observation, and hunting applications, that distinction matters less than the feature set and price difference.

Generation comparison: specs at a glance

A few practical notes on reading this table: "no daytime use" for analog tubes is a safety/longevity issue — exposing an unprotected I² tube to bright light can permanently damage the photocathode or phosphor screen. Most Gen 2 and Gen 3 units include protective automatic shut-off or sacrificial bright-source protection, but operators still treat them as night-only devices. Digital units have no such constraint, functioning equally well at noon or midnight. For a deeper look at how thermal imaging — a separate technology entirely — compares to image-intensifier and digital NV, see Thermal vs. Night Vision: Which Optic for 2026.

Practical considerations: which generation fits which use case

Budget-constrained observers doing casual backyard wildlife watching or short-range property patrol in moderate ambient light can get usable results from Gen 1 at a low cost of entry. The image quality and range will be modest, and the distortion is real — but for non-critical, close-range tasks it works.

Gen 2 sits in a middle band that serves law enforcement, security, and committed hunting applications in markets where Gen 3 is either unaffordable or export-restricted. Professionals who need a true passive night capability — detecting subjects at distance without emitting an IR glow that an adversary with their own NV gear could detect — often operate at Gen 2 or Gen 3 for exactly that reason: no active IR required.

Gen 3 is the professional and military standard. If your use case demands the longest passive detection range and you have the budget, nothing in the analog tier matches it. But for most lawful civilian applications — scouting, predator calling, shooting sports, property observation, or wildlife study — the functional gap between Gen 3 and a capable digital unit is smaller than the price gap suggests, especially once you factor in the recording, streaming, and daytime utility digital adds.

One honest tradeoff worth stating plainly: all active IR digital units emit an 850 nm or 940 nm signal that can be detected by another person using any NV device. In tactical or predator-hunting contexts where remaining undetected matters, that IR bloom is a genuine limitation. A passive Gen 3 tube using only ambient light does not have this problem. Know your use case before choosing.

Legality is a separate consideration for after-dark use. Many states restrict or prohibit hunting certain species at night or with artificial light — always check your state and local regulations before using any night-vision optic for hunting. Accufire covers the optics side; compliance with applicable law is on the shooter.

Frequently asked questions

What is the difference between Gen 1, Gen 2, and Gen 3 night vision?

All three generations use an analog image-intensifier tube that amplifies ambient light. Gen 1 uses a single electrostatic stage and has limited low-light performance. Gen 2 adds a microchannel plate for higher gain and better resolution. Gen 3 uses a gallium arsenide photocathode with a microchannel plate, delivering the best sensitivity in near-zero light, the longest tube life, and the highest price — Gen 3 tubes are also export-controlled under ITAR.

Is digital night vision better than Gen 3?

Not in raw passive low-light sensitivity. A quality Gen 3 analog tube outperforms most digital sensors at detecting subjects in complete darkness with no active infrared illumination. However, digital night vision offers advantages Gen 3 lacks: daytime use, photo and video recording, WiFi streaming, digital zoom, and a lower price floor. For civilian shooting sports, wildlife observation, and property monitoring, many shooters find digital NV's feature set more practical than paying Gen 3 prices for pure passive sensitivity.

Do digital night vision scopes need an IR illuminator?

In conditions with some ambient light — moonlight, light pollution, or stars on a clear night — a digital NV sensor can produce a usable image without active illumination. In true darkness, however, digital sensors require an infrared illuminator to illuminate the scene, since there are no photons for the sensor to capture. Gen 2 and Gen 3 analog tubes can operate passively in starlight without an active IR source, which matters in contexts where emitting an IR glow could reveal your position.

Are Gen 3 night vision devices legal to buy in the United States?

Yes, U.S. citizens can legally purchase and own Gen 3 night-vision devices. The ITAR restriction applies to export — selling or transferring Gen 3 units outside the United States requires State Department licensing. Domestic purchase and use by civilians is permitted, though state-level laws on hunting with night vision vary and should be checked before any after-dark field use.

What type of night vision does the Accufire OMNIS use?

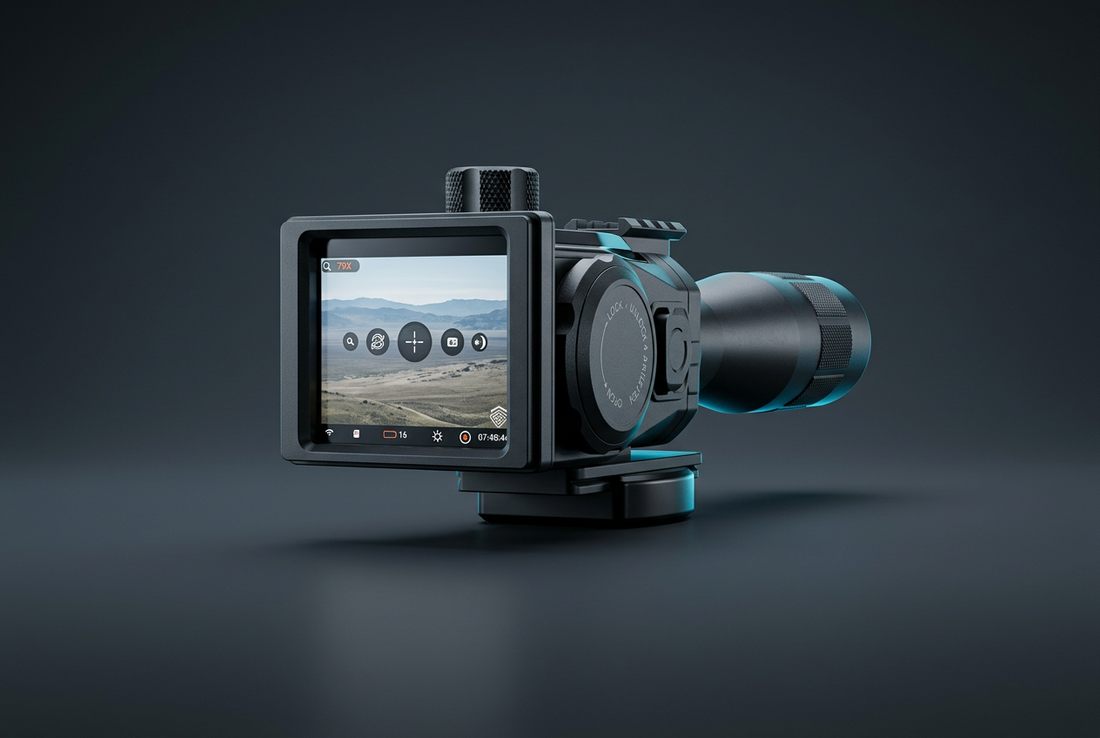

The Accufire OMNIS is a digital day/night spotting scope. It uses a solid-state sensor rather than an analog image-intensifier tube, so it is not a Gen 1, Gen 2, or Gen 3 device. It operates in daylight and switches to night mode via a removable IR-cut filter combined with infrared illumination, outputting to an OLED display with 30 to 120x digital zoom and 8 selectable MRAD reticles.

Whether you're weighing the cost of entry into analog tube NV against the feature set of a digital unit, or just trying to decode the marketing on a product listing, the generation labels trace directly to how the light amplification works — or whether there is a tube at all. For a deeper look at where digital NV sits relative to thermal imaging, Thermal vs. Night Vision: Which Optic for 2026 covers the full landscape. If you want to see how the OMNIS performs as an all-conditions spotting platform, our OMNIS overview goes deeper on the specific feature set.
