How to Mount a Red Dot on a Pistol
You just picked up a red dot for your carry pistol and you're staring at a small bag of hardware, wondering whether to just drop it at a gunsmith or figure it out yourself. The good news: mounting a pistol red dot is a straightforward process once you understand footprints, plates, and the right order of operations. Confirm your slide cut or adapter plate first, seat the optic to the correct footprint, torque the screws to the spec in the optic's manual, verify co-witness, then zero at 25 yards — and you'll have a solid, return-to-zero mount you can trust.
Key takeaways
- Footprint compatibility is the first step — the Accufire PCO Reflex fits the RMR footprint; the PCO Mini fits the smaller RMSc footprint used on slim and sub-compact slides.
- Use a torque driver — guessing on pistol optic screws risks either stripping them or losing zero under recoil. Always defer to the torque value in your optic's manual.
- Thread-locking compound (medium-strength) is standard practice for pistol optic screws; check your slide or frame manufacturer's guidance before applying.
- Co-witness height depends on your iron sights — absolute co-witness aligns the dot directly on top of irons; lower-third puts it slightly above.
- Zero at 25 yards for most pistol applications; re-verify zero after 50–100 rounds of break-in fire.
Step 1 — Confirm your slide cut and footprint
Before you mount anything, you need to know what footprint your pistol's slide cut accepts. Modern factory-optic-ready (OR) slides fall into a handful of common patterns. The two you'll encounter most often with compact and full-size pistols are the RMR footprint (Trijicon RMR-compatible, the widest-used standard on full-size slides) and the RMSc footprint (Shield RMSc-compatible, designed for slimmer and sub-compact frames with less real estate on the slide).
Accufire's PCO Reflex is built to the RMR footprint — if your Glock 17/19, SIG P320 full-size, or similar has an RMR cut, the PCO Reflex drops straight onto the slide without an adapter. The PCO Mini is built to the RMSc footprint, making it the right call for sub-compact and slim-frame pistols with the smaller cut. If your slide does not have a factory cut, you will need an adapter plate that matches your slide's pattern on the bottom and your chosen footprint on top. Many aftermarket plates are available for popular frames; consult your pistol manufacturer or a reputable plate supplier, and confirm the plate height before ordering. An honest limitation here: adding a plate raises the optic slightly, which can affect your co-witness height and holster fit — check both before finalizing your setup. For a deeper look at how these footprints differ, the best red dot sight for a pistol guide covers the footprint landscape across common frames.
Step 2 — Gather your tools and prep the slide
You will need a torque driver (inch-pound or Newton-meter, depending on your manual's spec), the correct bit for your optic's mounting screws (typically Torx T10 or T15, or hex — check the hardware bag), medium-strength thread-locking compound (e.g., Loctite 243 or equivalent), a clean microfiber cloth, and the screws supplied with the optic. Do not substitute screws from another optic — thread pitch and head geometry differ.
Ensure the pistol is unloaded and verified safe. Wipe the slide mounting surface with a clean cloth to remove any oil, carbon, or debris. Oil on the mating surfaces can prevent the optic from seating flush and may allow movement under recoil. If the slide has a manufacturer-applied protective coating in the cut, a light wipe with isopropyl alcohol is acceptable; avoid abrasives.
Step 3 — Mount the optic to the footprint
Place the optic over the slide cut and align the screw holes. If your optic shipped with a recoil lug or indexing pin (some designs include one), seat it first before lowering the optic flat. Start each screw finger-tight before applying any torque — threading one screw down fully while the others are loose can cause the optic to sit canted. Once all screws are started and the optic sits flush, apply a small drop of medium-strength thread-locking compound to each screw and let it wick in per the compound's directions.

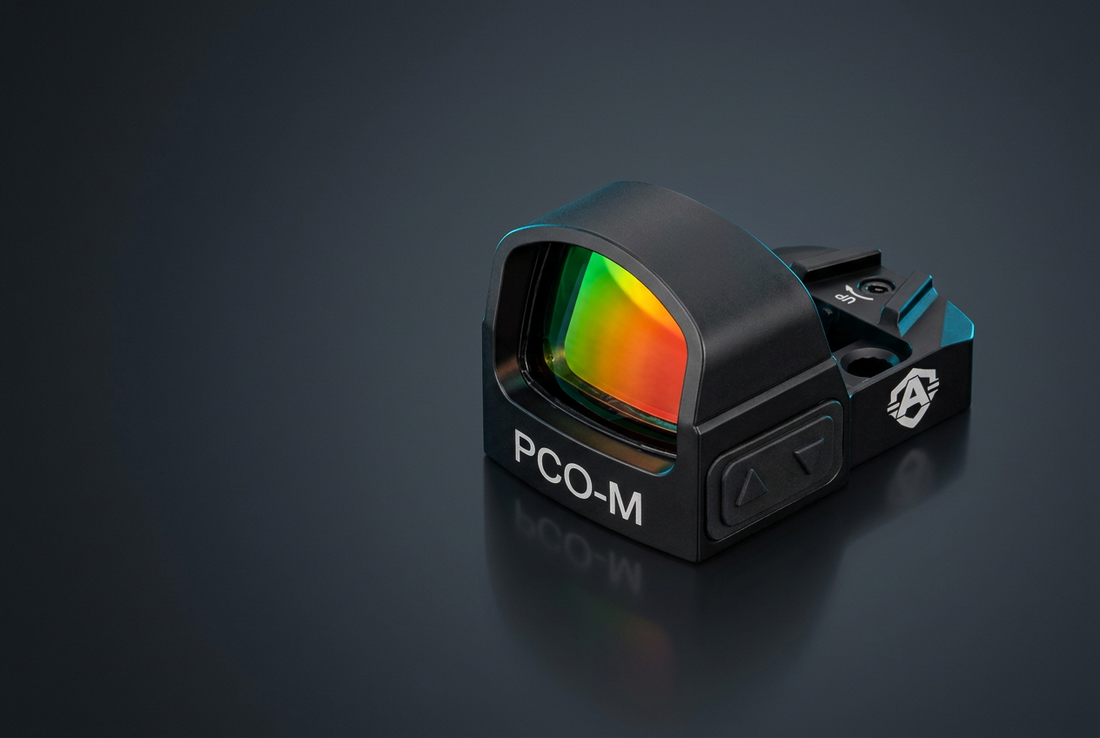

The PCO Mini uses a side-loading battery tray, which means you can replace the CR battery without removing the optic from the slide — a practical advantage for a carry gun where maintaining zero matters. The PCO Reflex uses a top-loading battery design; factor that in for your workflow.
Step 4 — Torque to the spec in your optic's manual
This step is where many shooters shortcut and pay for it later. Under-torqued screws will back out under recoil and cost you zero. Over-torqued screws strip threads in aluminum slides and can crack the optic body. The correct torque value for your Accufire optic is published in the manual that ships with the sight — follow that number exactly with a calibrated torque driver. We are not publishing a number here because torque specs can vary by production revision, and an incorrect number is worse than no number. If you no longer have the manual, contact Accufire directly for the current spec before proceeding.
Tighten in an alternating pattern if there are two or more screws (similar to a lug-nut pattern) to keep the optic seated evenly. Do a final check by attempting to rock the optic by hand after the compound has set — there should be zero movement.
Step 5 — Verify co-witness with your iron sights
Most optic-ready pistols retain factory iron sights (or accept suppressor-height irons that extend above the optic body). Co-witness means your iron sights are visible through the optic's window, giving you a backup aiming reference if the dot goes dark. Absolute co-witness places the dot exactly on top of the iron sight post. Lower-third co-witness positions the irons in the lower portion of the window, leaving more clear glass for the dot during fast shooting. Neither is objectively better — it is a personal preference and holster-dependent choice. Our full breakdown of both approaches is at red dot co-witness: absolute vs lower-third.
Check that your slide's iron sights are actually visible through the PCO window. If the factory sights sit too low, suppressor-height or optic-height irons from your pistol's manufacturer are the standard solution — Accufire makes red dots, not iron sights, so that selection falls to your pistol platform's accessory ecosystem.
Step 6 — Zero the optic at 25 yards
With the optic mounted and torqued, head to the range. Twenty-five yards is the standard starting distance for pistol red dot zeroes — at that distance a 3 MOA dot covers roughly ¾ inch, giving you enough precision to see where your group is landing without the target being too close to mask errors. Fire a 3–5 round group from a supported or two-handed standing position, note where the group centers relative to your point of aim, then adjust the elevation and windage turrets accordingly. The PCO Mini's 3 MOA dot subtends approximately 0.75 inches at 25 yards and 3 inches at 100 yards — a useful reference for holdover at distance. For a full step-by-step zeroing walkthrough, see how to zero a red dot sight.
After your initial zero, run 50–100 rounds through the pistol and re-check the zero. Recoil can settle screws slightly even with thread-locker, and a re-verification gives you confidence before carry or competition use.
Shop Accufire pistol red dots. Both the PCO Reflex (RMR footprint) and PCO Mini (RMSc footprint) are purpose-built open reflex sights for pistol slides — 3 MOA dot, RMR/RMSc footprints, and straightforward mounting — browse the red dot collection.
Accufire PCO Mini — $179.99, RMSc footprint with side-loading battery for carry pistols. Keeps the optic on your slide when you swap batteries. View the PCO Mini.
Frequently asked questions
What footprint does the Accufire PCO Mini use?
The PCO Mini is built on the RMSc footprint, which fits slim and sub-compact pistol slides that use the Shield RMSc pattern. If your slide has an RMR cut instead, look at the Accufire PCO Reflex, which uses the RMR footprint.
Do I need thread-locking compound when mounting a pistol red dot?
Medium-strength thread-locking compound is standard practice for pistol optic screws because slide recoil can work screws loose over time. Check your slide or frame manufacturer's guidance before applying, and use only medium-strength compound — permanent thread-locker can make screw removal very difficult.
What torque should I use for pistol optic mounting screws?
Always use the torque value published in your specific optic's manual. We do not publish a generic number here because specs vary by optic model and production revision, and using the wrong value risks stripping threads or losing zero under recoil. If you have misplaced the manual, contact the optic manufacturer for the current specification.
What is co-witness and do I need it for a pistol red dot?
Co-witness means your pistol's iron sights are visible through the red dot window, giving you a backup aiming reference if the optic fails. Absolute co-witness aligns the dot on top of the sight post; lower-third places irons in the lower portion of the window. It is not required, but most carry-focused shooters prefer having irons available as a fallback.
How far away should I zero a pistol red dot?
Twenty-five yards is the standard starting distance for most pistol red dot applications. At 25 yards a 3 MOA dot covers roughly three-quarters of an inch, which is precise enough to place a meaningful group and see where adjustments are needed. Re-verify zero after 50 to 100 rounds of break-in fire to confirm the mount has settled.
Getting the mount right the first time saves you a trip back to the range to chase a wandering zero. Confirm your footprint, torque to spec, verify co-witness, and zero — in that order. If you are still choosing which optic suits your frame, the best pistol red dot guide breaks down fit by slide cut and use case. Once you are zeroed, the full zeroing walkthrough has everything you need for dialing in at multiple distances.
