30mm vs 1-Inch Scope Tube: Does It Matter?
You are shopping for rings to mount a new rifle scope and the spec sheet lists "30mm tube." Your rail hardware box says "1-inch rings." Before you order the wrong set and wait another week for delivery, it helps to understand what tube diameter actually controls — and what it does not. Tube diameter determines which rings fit the scope and how much internal elevation and windage travel the erector system has; it does not affect image brightness or optical quality.
Key takeaways
- 1-inch (25.4 mm) and 30 mm refer to the main tube's outer diameter — the section that sits in your rings. They are not interchangeable.
- A wider tube allows a longer erector travel range, which matters most at long range or on rifles with heavy cant in the base.
- Image brightness is set by the objective lens diameter and glass quality, not the tube diameter — a 50 mm objective on a 1-inch tube and a 50 mm objective on a 30 mm tube pass the same amount of light.
- 34 mm tubes offer even more erector travel than 30 mm, at the cost of heavier, harder-to-find rings.
- Both Accufire rifle scopes — the EVRO-12 ($479.00) and the ATRO-20 ($649.25) — run 30 mm tubes, so 30 mm rings are the correct choice for either.
What tube diameter actually controls
The main tube of a rifle scope houses the erector assembly — the lens group that physically moves when you dial elevation or windage. A larger-diameter tube gives the erector more room to travel before it runs out of adjustment range. In practical numbers, a 1-inch tube typically yields somewhere in the range of 50–70 MOA of total elevation travel, while a 30 mm tube can push that figure noticeably higher, often 80–100 MOA or more depending on the design. A 34 mm tube extends the range further still.
Why does this matter? If you are shooting at extended distances — say, 600 yards and beyond — or if your rail has a 20 MOA forward cant built in to give you a head start on holdover, you need a scope that still has room to zero and then dial up from there. A 1-inch scope that maxes out its elevation at 500 yards is a problem. A 30 mm or 34 mm tube gives the engineer more budget to allocate toward useful elevation travel without mechanical compromise.
For a detailed breakdown of how focal planes interact with the erector system and why first-focal-plane scopes like the EVRO-12 show true subtensions at all magnifications, see our first-focal-plane vs second-focal-plane comparison.
What tube diameter does NOT control
This is where a great deal of confusion lives in online forums. Many shooters assume a bigger tube means more light reaches the eye. That assumption is incorrect. The limiting aperture for light transmission in a scope is the objective lens — the large bell at the front. Both the EVRO-12 and ATRO-20 use a 50 mm objective. If you were to put a 50 mm objective on a 1-inch tube and a 50 mm objective on a 30 mm tube with otherwise identical glass and coatings, the exit pupil and theoretical light throughput would be the same. The tube is a structural housing; it is not a light pipe.
Image resolution, contrast, and color fidelity are products of glass quality, coatings, and lens-to-lens alignment — none of which are determined by whether the tube measures 25.4 mm or 30 mm around the outside.
Ring compatibility: the practical consequence most buyers feel first
Before elevation travel even becomes relevant, tube diameter determines which rings or mounts you need. 1-inch and 30 mm rings are not interchangeable. If you own 1-inch rings from a previous scope and your new scope is 30 mm, you need new rings. The same applies in reverse. Rings are sold by tube diameter, then by height (low, medium, high, extra-high) to clear the objective bell without contacting the barrel. Ring height choice depends on how tall the objective bell sits and how low you want to position your cheek on the stock.
34 mm tubes add another layer: rings in that diameter are less common and generally heavier. The benefit of 34 mm is primarily maximum erector travel — relevant to precision long-range shooters who dial extreme elevation corrections. For most hunting and target applications at typical distances, 30 mm already provides ample travel.
Side-by-side comparison: 1-inch vs 30 mm vs 34 mm
| Feature | 1-Inch (25.4 mm) | 30 mm | 34 mm |
|---|---|---|---|
| Ring availability | Very common, lowest cost | Common, wide selection | Limited, specialty market |
| Typical elevation travel | ~50–70 MOA (design-dependent) | ~80–100 MOA (design-dependent) | ~100+ MOA (design-dependent) |
| Erector room | Tighter; limits long-range cant | More headroom; handles 20 MOA bases | Most headroom; precision ELR use |
| Tube weight | Lightest | Moderate increase | Heaviest; stiffer construction |
| Effect on image brightness | None — set by objective | None — set by objective | None — set by objective |
| Accufire scope options | Not available | EVRO-12, ATRO-20 | Not available |
Where both Accufire scopes land

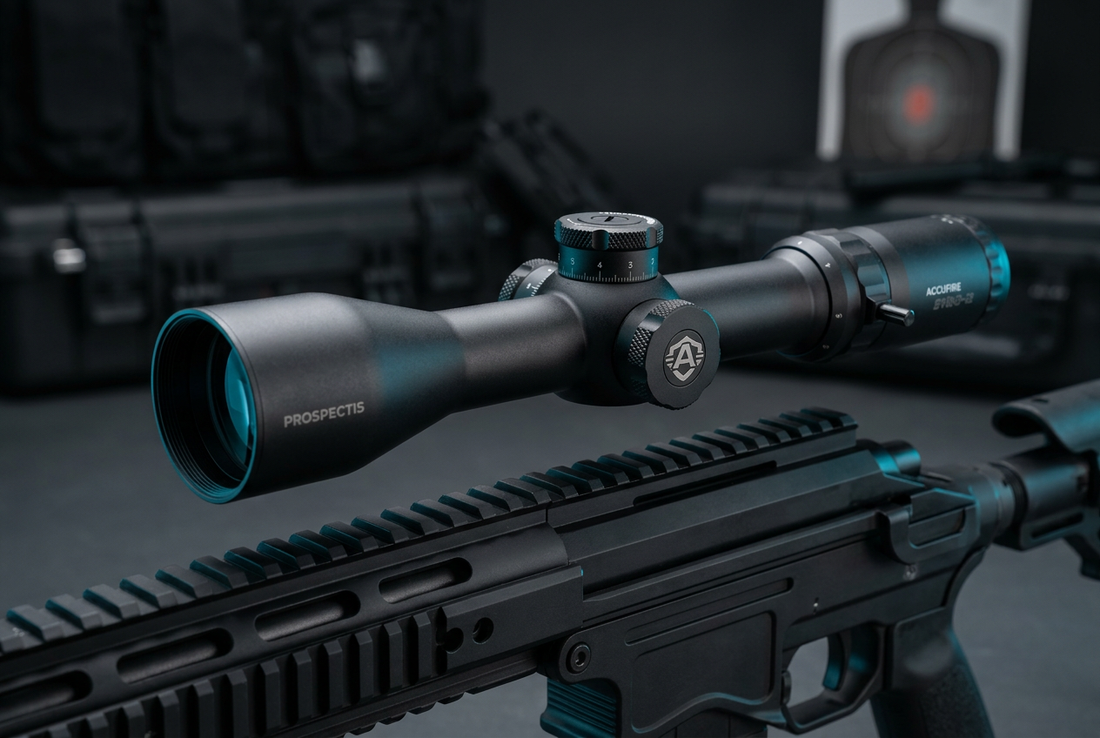

The Accufire EVRO-12 ($479.00) and ATRO-20 ($649.25) both run 30 mm tubes. Both are first-focal-plane designs with 0.1 mrad click adjustments and mil reticles on a 2.5–20×50 platform. The 30 mm tube gives each enough erector travel to handle field conditions: uneven bases, canted rails, and the larger adjustments needed when zeroing at distance. If you are already planning to run a 20 MOA picatinny base to extend your long-range reach, the 30 mm tube helps you stay well within the adjustment range after zeroing.
One honest limitation: neither scope publishes a specific total elevation travel figure in the current spec sheet. Shooters planning extreme long-range loads with heavily canted bases who need a guaranteed 100+ MOA of elevation should verify with Accufire directly before assuming the number. At typical 300–600 yard hunting and target distances with a standard 0 MOA or 20 MOA base, both scopes perform as expected for their tier. To understand the turret mechanics in detail — including how the EVRO-12's locking turrets and the 0.1 mrad click adjustments on both scopes work — see our MOA vs MRAD guide.
Practical decision guide: which tube size for your build?
If you are starting fresh with a new rifle and scope, the tube diameter decision is simple: buy the scope that fits your magnification, reticle, and budget needs, then buy the rings that match it. Do not choose a scope based on tube diameter alone. Choose based on optical quality, reticle type, click value, focal plane, and price — then confirm the ring diameter and height after the scope is selected.
If you already own rings from a previous build, check whether they match the new scope before ordering. A 30 mm scope dropped into 1-inch rings will not seat correctly and can crack the tube under recoil. This is a non-negotiable hardware match.
For shooters running a 20 MOA cant base to maximize long-range reach, the additional erector room of a 30 mm tube compared to a 1-inch tube is genuinely useful — you use more of the elevation budget getting back to zero at 100 yards, and the remaining travel may be tighter on a 1-inch scope. In that scenario, 30 mm is the straightforward choice. For more on the full system — mounts, ring heights, base torque, and leveling — check our rifle scopes complete guide.
Ready to mount a 30 mm scope on your rifle? Both Accufire variable rifle scopes run 30 mm tubes and first-focal-plane mil reticles — pair them with 30 mm rings and a quality base and you are set from 100 yards to extended distance — shop Accufire rifle scopes.
Accufire EVRO-12 — $479.00, FFP 2.5–20×50, 30 mm tube, 0.1 mrad clicks, locking turrets, side-focus parallax from 50 yards. The entry point into precision-capable glass without the premium-brand markup. View the EVRO-12.
Frequently asked questions
Does a 30 mm scope tube let in more light than a 1-inch tube?
No. Light transmission is controlled by the objective lens diameter and glass coatings, not the main tube size. A 50 mm objective passes the same amount of light regardless of whether it sits on a 1-inch, 30 mm, or 34 mm tube. Tube diameter affects erector travel and ring compatibility only.
Can I use 1-inch rings on a 30 mm scope?
No. Ring diameter must match tube diameter exactly. Mounting a 30 mm tube in 1-inch rings will not seat correctly and risks damaging the tube under recoil. Purchase 30 mm rings rated for your rail system and verify the ring height clears your objective bell before tightening.
What is the main advantage of a 30 mm tube over a 1-inch tube?
The primary advantage is additional internal erector travel, which translates to more total elevation and windage adjustment range. This matters most at long range, when using a canted base, or when your zero leaves you close to the edge of a 1-inch tube's travel limits. Image quality is not affected by tube diameter.
Do the Accufire EVRO-12 and ATRO-20 use 1-inch or 30 mm tubes?
Both the EVRO-12 and the ATRO-20 use 30 mm main tubes. You will need 30 mm rings to mount either scope. Ring height depends on your objective bell clearance and rail height — measure or consult a ring height chart for your specific chassis before ordering.
Is a 34 mm tube worth it over 30 mm for most shooters?
For most hunters and target shooters at distances under 800 yards, the extra erector travel of a 34 mm tube offers little practical benefit over a well-designed 30 mm scope. The trade-offs are heavier rings, fewer ring options, and higher cost. 34 mm makes the most sense for extreme long-range precision shooters who regularly dial large elevation corrections and need every last MOA of travel the erector can provide.
Understanding tube diameter clears up one of the most persistent myths in optics buying — and points you straight at the right rings the first time. For the full picture on scope selection including reticle types, focal plane tradeoffs, and magnification choices, the rifle scopes complete guide covers every variable. If turret mechanics and click values are the next question on your list, the MOA vs MRAD guide walks through 0.1 mrad vs 1/4 MOA in detail, and our parallax explainer covers the side-focus adjustment both Accufire scopes share.
